玻璃纤维无捻粗纱布(方格布)

点击图片查看原图
品牌: 中天俊达
单价: 面议
起订:
供货总量:
发货期限: 自买家付款之日起 3 天内发货
所在地: 天津
有效期至: 长期有效
最后更新: 2015-03-17 22:05
浏览次数: 77
询价
公司基本资料信息








产品详细说明
 产品简介:Introduction

玻璃纤维无捻粗纱布或称方格布是由直接无捻粗纱机织而成。

Woven Rovings are composed of direct rovings woven into a fabric.



产品特点:Features

布厚均匀,组织结构一致

Uniform weight and construction

毛羽少,树脂浸透速度快

Few Fuzz , Good Wet-out

优良的覆膜性和脱泡性

 Good Covering and Air-release

 机械强度高

 High Mechanical Strength

 湿态强度保留率高

 High Wet-strength Retention

 板材透光性好

 Good Translucency of Laminates





产品应用:Applications

方格布是一种材质均匀的片状双向增强材料,其在FRP手胡工艺中较多采用,用于制造船艇、容器、飞机、汽车部件、家俱、运动设施等大面积FRP制品。

The construction of woven roving gives bi-directional (0°/90°) reinforcement and the strength of continuous filaments. Is ideal basic material for FRP hand lay-up process , typical products like

boats, containers, aircraft and automotive parts, home furnishings, sports equipment, corrosion-resistant tanks, translucent panels, and other FRP parts with large areas.

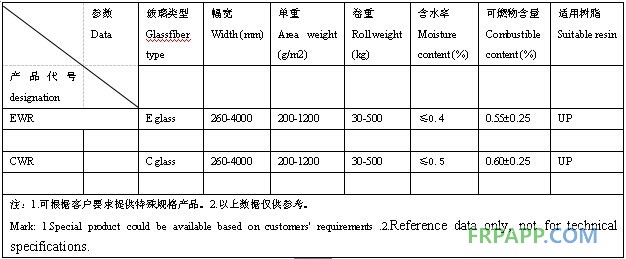

技术指标:Technical data

方格布数据

包装:Packaging

中天俊达所产方格布,使用直径为76mm的纸管卷取,毡卷包覆聚乙烯塑料袋并装入瓦楞纸箱。如要求托盘包装时,每托盘竖放16或12箱,横放9或6箱。托盘堆高不大于2层,纸箱堆高不超过5层。

Woven Roving from Zhongtian Junda , is wound into a roll on a cardboard inner tube with an inside diameter of 76mm (3.0"). All densities are 23cm (9") in diameter. Each roll is wrapped with a plastic bag and placed in a cardboard box. 12 or 16 boxes are placed vertically or 6 or 9 boxes are placed  horizontally on a pallet, which is stretch wrapped.

The pallets should be stocked 2 layers high maximum ,and the cartons 5 layers maximum when stocked .



贮存:Storage

产品应置于干燥、凉爽处,储存温度5-35°C,湿度35-65°C的环境下最佳。若不用,请勿打开包装,以免受潮,影响使用。

 Unless otherwise specified, it is recommended to store products in a cool, dry area. Temperature should not exceed 35°C (95°F) and the relative humidity should be kept below 65%. The products must remain in packaging material until just prior to their use. If these conditions are respected, the product should not undergo significant changes when stored for extended periods of time.
 Stacking
 To ensure safety and avoid damage to the product, skids should not be stacked more than two high.
